P4-W80
La puissance sans l’encombrement
Enceinte murale ultra plate avec woofer de 8 pouces
P4-W80
La puissance sans l’encombrement. Enceinte murale ultra plate avec woofer de 8 pouces.

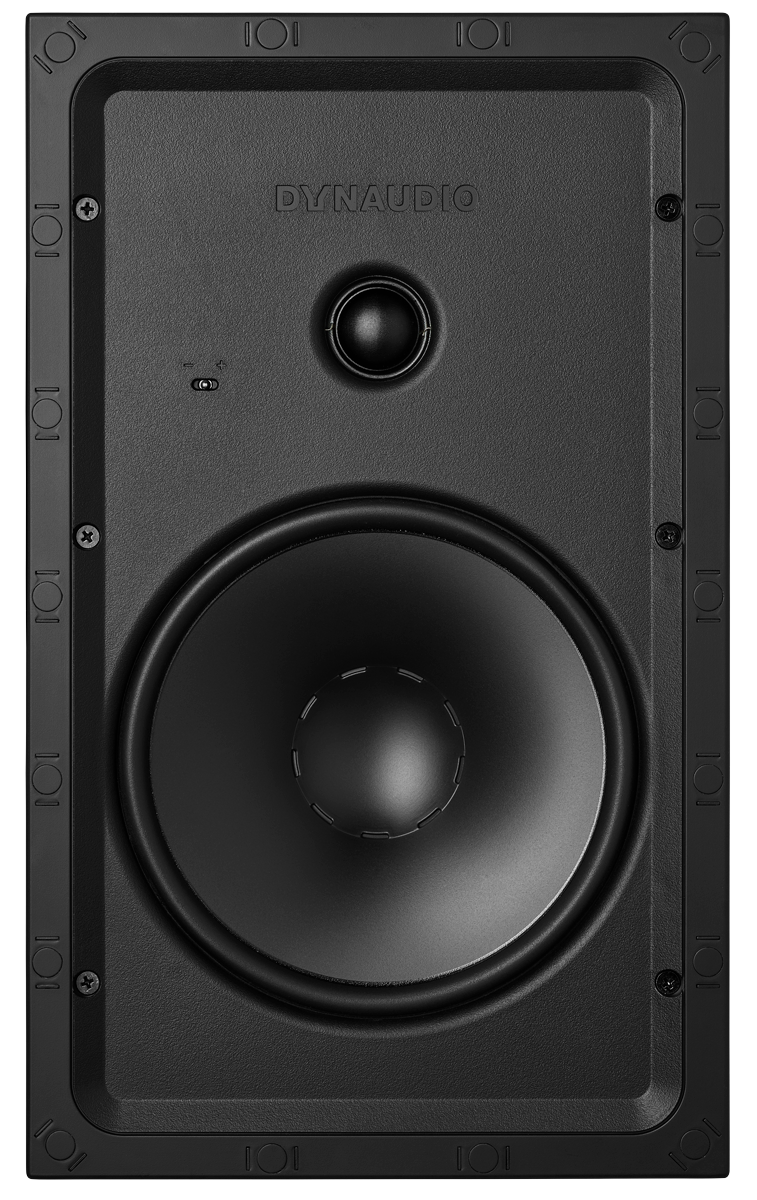

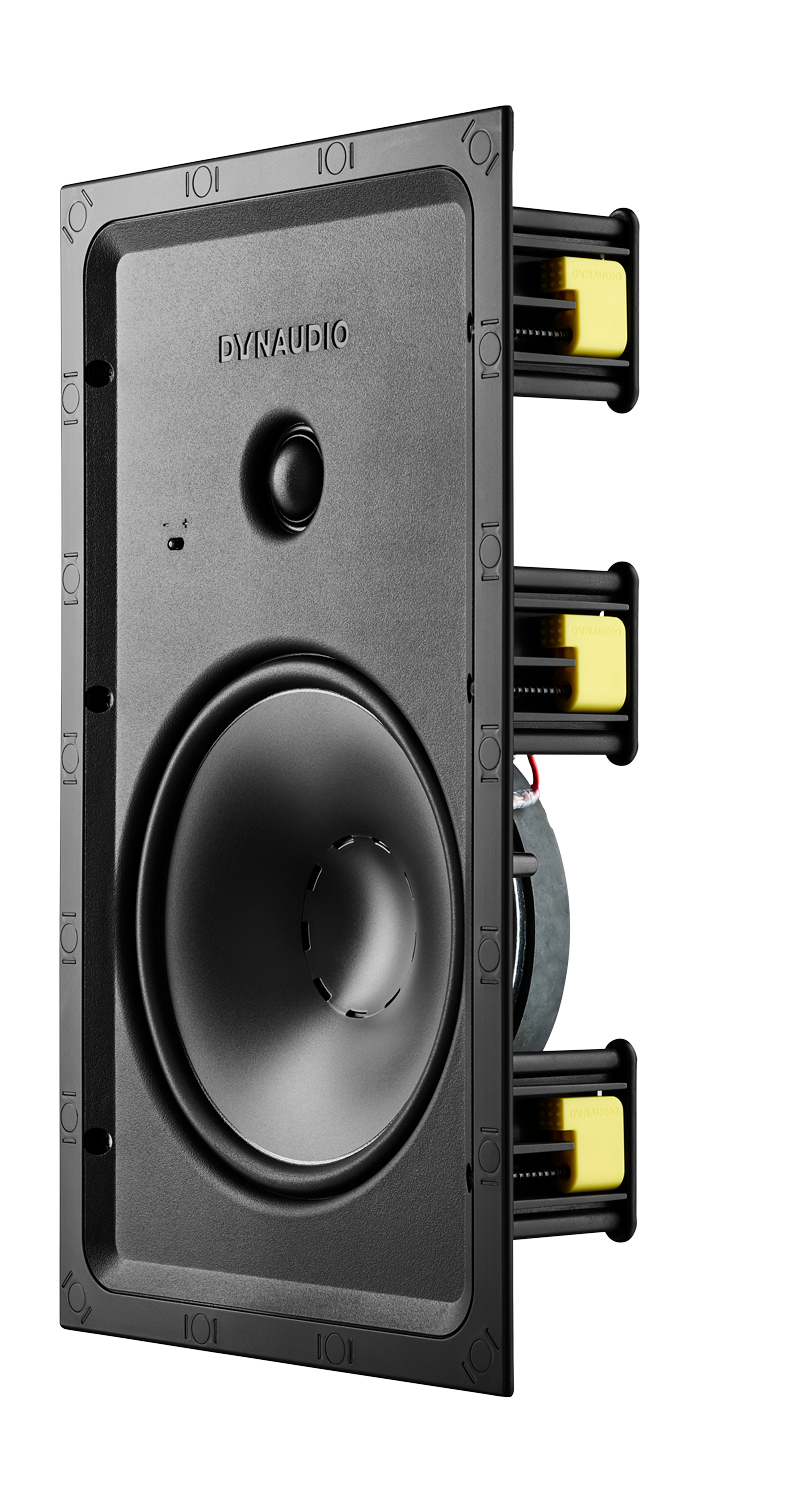

Elle offre toute la puissance, la finesse et les détails nets de la plus petite enceinte murale P4-W65, et les pousse un cran plus haut pour s’adapter à de plus grands espaces. Le woofer de 8 pouces en MSP (Magnesium Silicate Polymer – Polymère de silicate de magnésium) est complété par un tweeter Dynaudio de 28 mm à dôme souple enduit et est placé dans un châssis d’une seul pièce dont l’installation est un véritable jeu d’enfant.

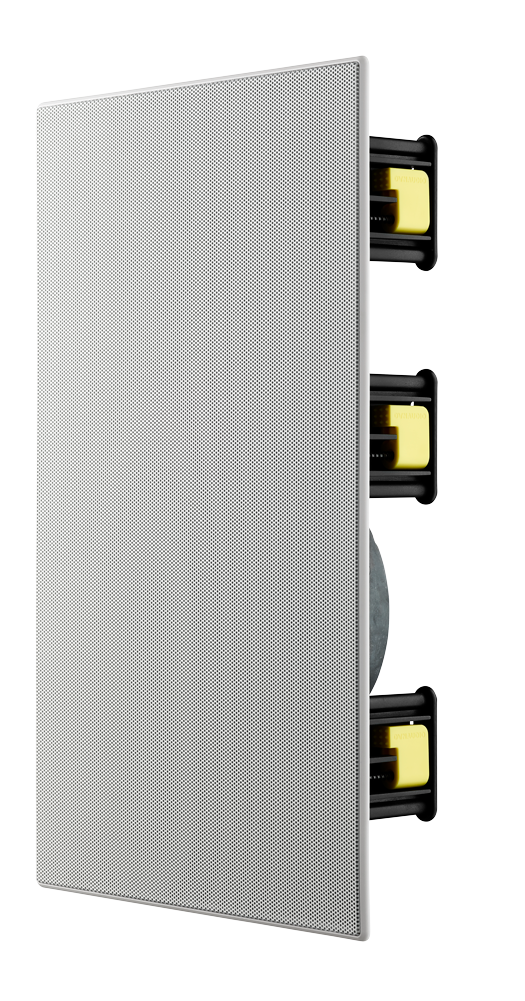

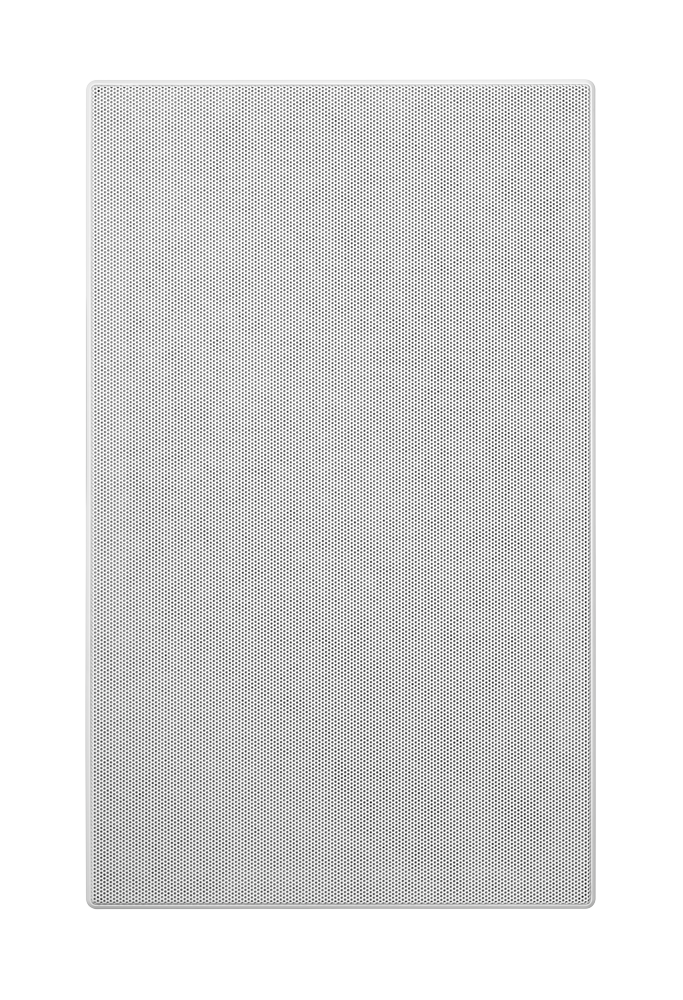

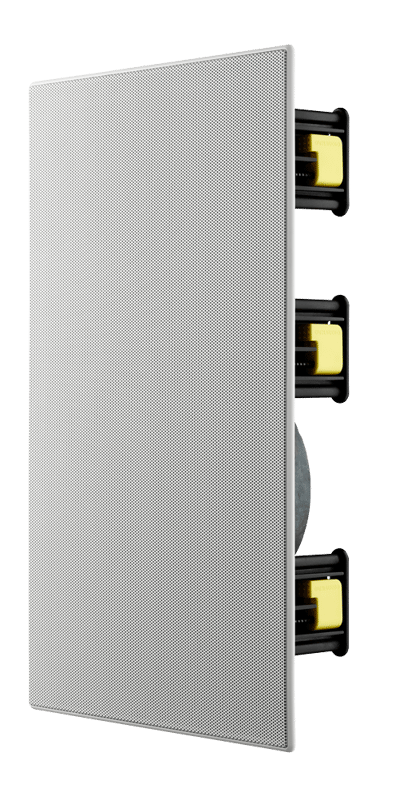

Une fois l’enceinte installée, ajustez la sensibilité du tweeter (-3dB, 0dB ou + 3dB sont disponibles) pour l’adapter au volume de la pièce, placez la grille magnétique prête à peindre et voilà...

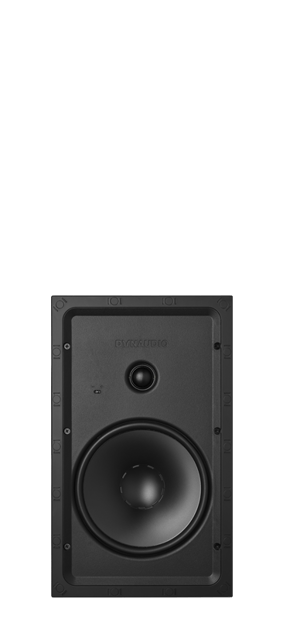

![Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px](https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg?width=400&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg 400w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg?width=600&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg 600w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg?width=900&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg 900w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg?width=2000&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Front_1200x1200px.jpg 2000w)

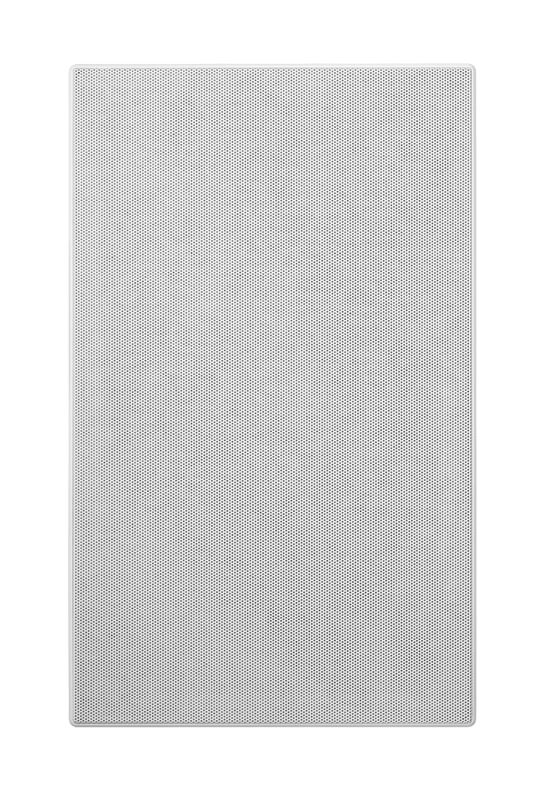

![Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px](https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg?width=400&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg 400w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg?width=600&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg 600w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg?width=900&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg 900w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg?width=2000&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80--Front_Grill_1200x1200px.jpg 2000w)

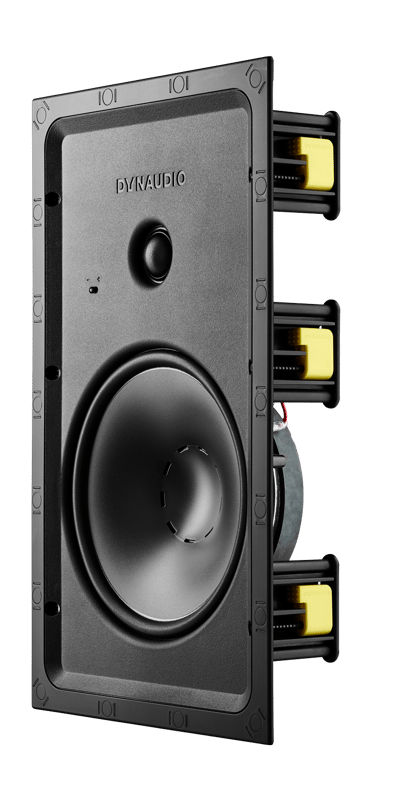

![Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px](https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg?width=400&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg 400w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg?width=600&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg 600w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg?width=900&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg 900w, https://14515867.fs1.hubspotusercontent-na1.net/hub/14515867/hubfs/Dynaudio/Custom%20Install/Performance%20series/Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg?width=2000&name=Dynaudio-Custom-Install---Performance-series---In-wall---P4-W80---Angle_1200x1200px.jpg 2000w)
P4-W80
Spécifications techniques
- Status Actuel
- Segment Custom Install
- Série Performance
- Type Enceinte murale
- Sensibilité (dB @ 2.83V/1m) 89
- Puissance nominale 50
- Puissance long terme 160
- Impédance nominale (Ohm) 8
- Impédance (Minimum) 5
- Coupure basse (Hz @ +/- 3 dB) 42
- Coupure haute (kHz @ +/- 3 dB) 20
- Crossover 2 voies
- Tweeter 28 mm soft dome
- Médium/Woofer 20 cm MSP
- Options de niveau de tweeter -3dB, 0dB, +3dB
- Largeur mm 237
- Hauteur mm 392
- Profondeur mm 77
- Largeur pouces 9 5/16
- Hauteur pouces 15 3/8
- Profondeur pouces 3
- Largeur découpe mm 215
- Hauteur découpe mm 370
- Hauteur découpe pouces 8 4/8
- Largeur découpe pouces 14 5/8
![Product-Lineart-P4-W80](https://dynaudio.fr/hs-fs/hubfs/Dynaudio/Lineart/Product-Lineart-P4-W80.png?width=676&height=1201&name=Product-Lineart-P4-W80.png)
