Installation IC17

Two-way in-ceiling round installation loudspeaker

TROUVER UN REVENDEUR

Installation IC17

Two-way in-ceiling round installation loudspeaker. The first Dynaudio installation products brought the un-compromised Dynaudio sound quality to the realm of architectural audio. Now there is another high performance model optimized for In-Ceiling custom installations: Dynaudio IC 17.

The Dynaudio IC 17 is a two-way installation loudspeaker intended for in-ceiling installations for stereo, multi-room or multi-channel audio systems.

The IC 17 mid/woofer is equipped with Dynaudio's characteristic MSP (Magnesium Silicate Polymer) 6.5" cone membrane and 75 mm diameter aluminium voice coil, which combine to ensure the authentic reproduction of even the deepest frequencies.

The tweeter is mounted slightly off-center in front of the woofer and reproduces the high frequency range via a 3/4" diameter specially coated soft dome. The tweeter can be adjusted in two steps via a switch.

The directivity characteristics and all other parameters are precisely optimized for the in-ceiling integration. The IC 17 can not only play the role of a visually unobtrusive surround speaker, but also performs admirably as a main speaker, all while delivering the authentic sound quality synonymous with Dynaudio.

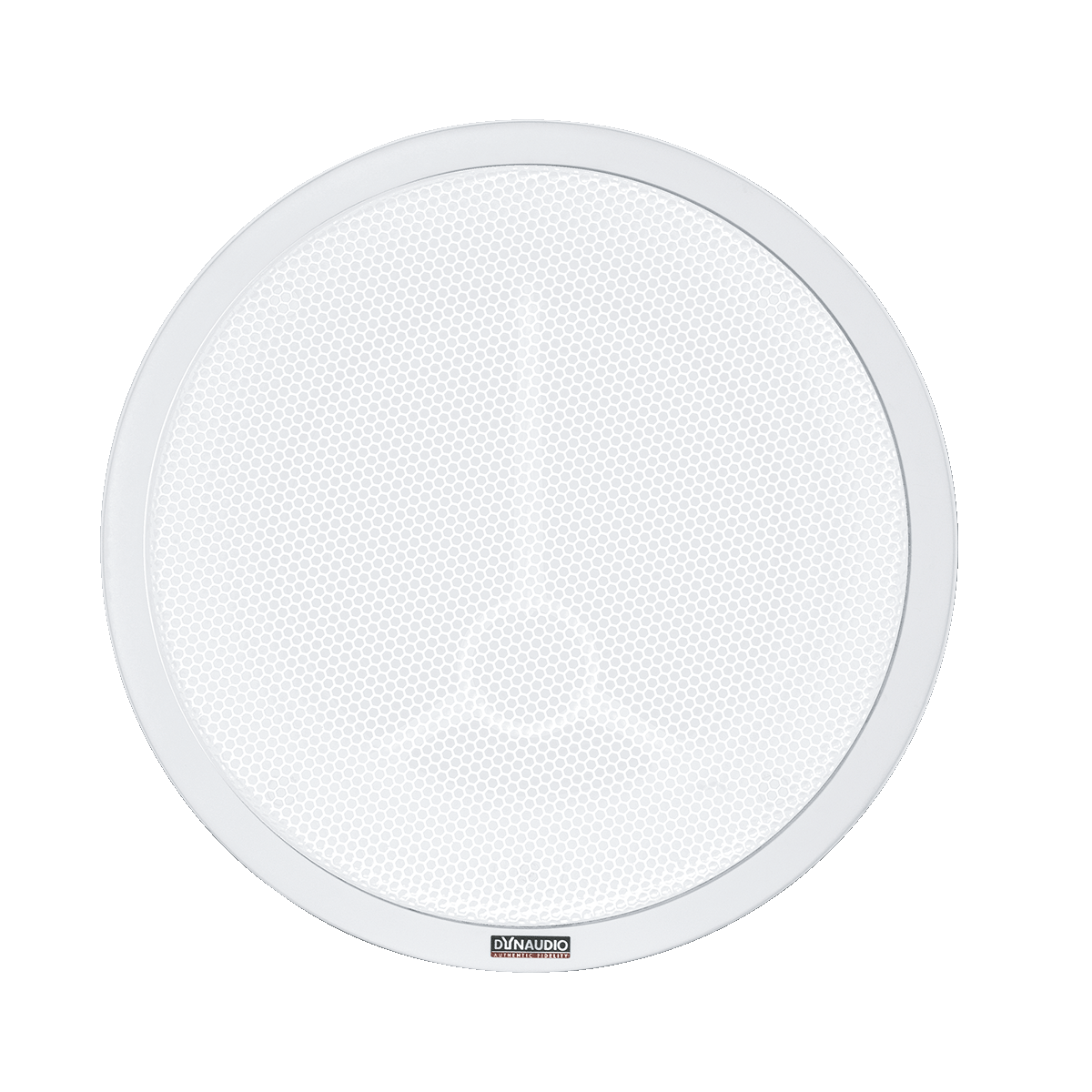

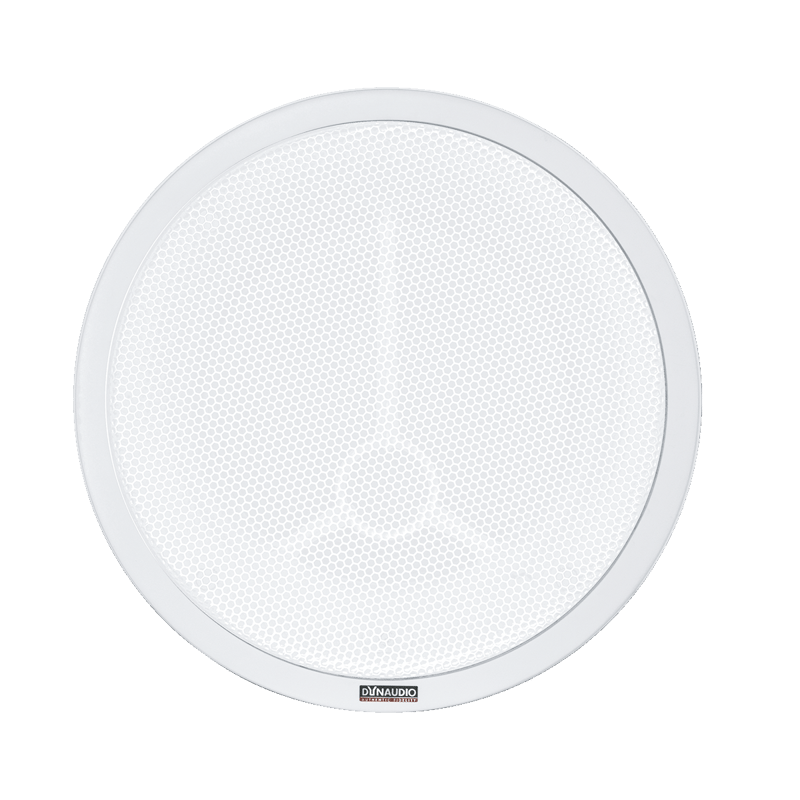

Dynaudio_IC17_cover
Dynaudio_IC17_emotion
DYN_IC17_side

IC17

Spécifications techniques

  • Statut Modèles Discontinués
  • Segment Custom Install
  • Séries Legacy
  • Type Enceinte encastrée
  • Sensibilité (dB @ 2.83V/1m) 88
  • Puissance long terme 100
  • Impédance nominale (Ohm) 4
  • Coupure basse (Hz @ +/- 3 dB) 45
  • Coupure haute (kHz @ +/- 3 dB) 25
  • Crossover 2 voies
  • Tweeter 28 mm soft dome
  • Médium/Woofer 17 cm MSP
Voir plus

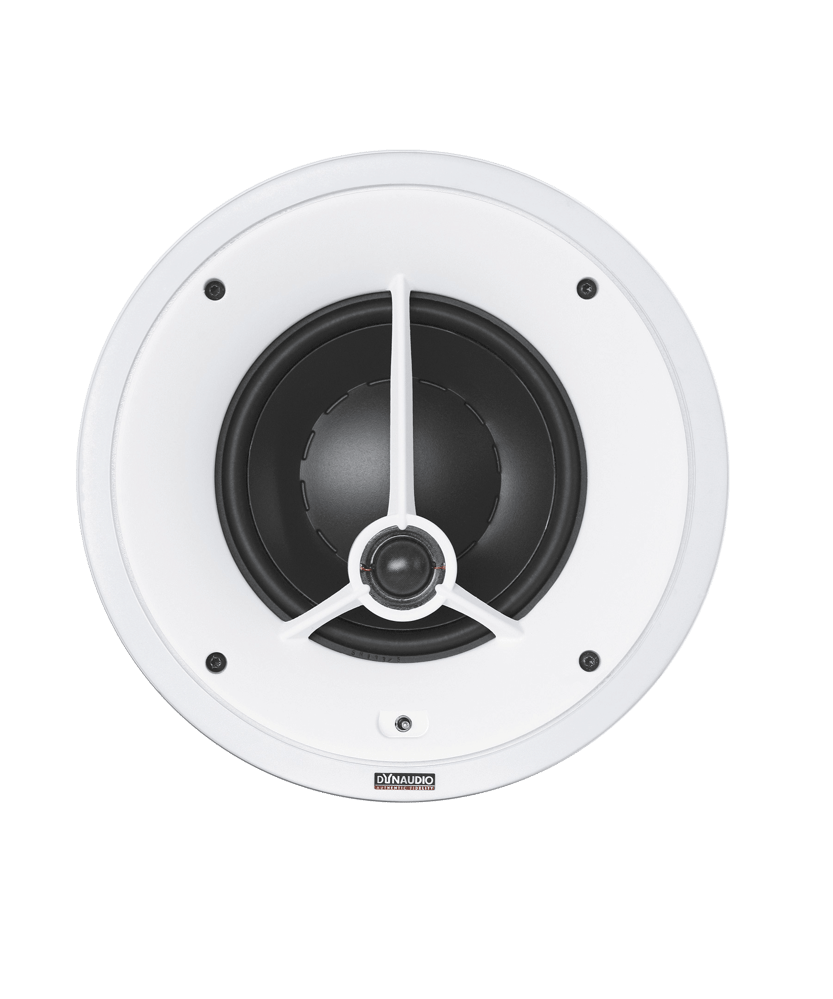

DYN_IC17_front

La série Legacy Install

  • Statut:
  • Segment :
  • Séries :
  • Type :
  • Sensibilité (dB @ 2.83V/1m) :
  • Puissance long terme :
  • Impédance nominale (Ohm) :
  • Coupure basse (Hz @ +/- 3 dB):
  • Coupure haute (kHz @ +/- 3 dB) :
  • Crossover :
  • Tweeter :
  • Médium/Woofer :
Voir plus
  • IP24
  • Modèles Discontinués
  • Custom Install
  • Legacy
  • Enceinte murale
  • 90
  • 150
  • 4
  • 40
  • 23
  • 2 voies
  • 28 mm soft dome
  • 24 cm MSP
  • IW17
  • Modèles Discontinués
  • Custom Install
  • Legacy
  • Enceinte murale
  • 88
  • 100
  • 4
  • 45
  • 25
  • 2 voies
  • 28 mm soft dome
  • 17 cm MSP
  • IC17
  • Modèles Discontinués
  • Custom Install
  • Legacy
  • Enceinte encastrée
  • 88
  • 100
  • 4
  • 45
  • 25
  • 2 voies
  • 28 mm soft dome
  • 17 cm MSP
  • IP17
  • Modèles Discontinués
  • Custom Install
  • Legacy
  • Enceinte murale
  • 88
  • 150
  • 8
  • 45
  • 23
  • 2 voies
  • 28 mm soft dome
  • 17 cm MSP
